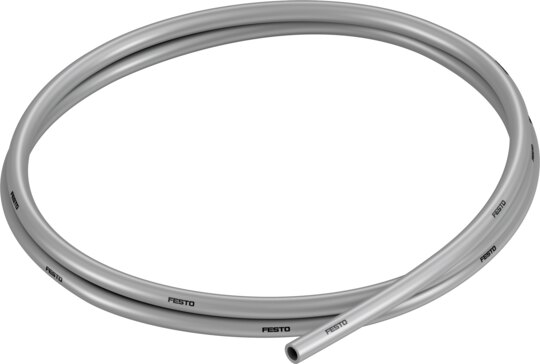

Festo, Plastic tubing PUN-6X1-SI, 152586

Technical Data Plastic tubing PUN-6X1-SI

• Outside diameter6 mm
• Flow-relevant bending radius26.5 mm
• Inside diameter4 mm
• Min. bending radius16 mm
• Instructions on useTPE-U, ester-based The plastic tubing can only be installed in contact with cables if the sheathing is free from phosphoric acid esters. Otherwise the plastic tubing can get damaged.
• Tubing characteristicsSuitable for energy chains
• Operating pressure complete temperature range-0.095 MPa ... 0.7 MPa
• Operating pressure complete temperature range-0.95 bar ... 7 bar
• Operating pressure complete temperature range-13.775 psi ... 101.5 psi
• Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
• Temperature-dependent operating pressure-0.95 bar ... 10 bar
• Temperature-dependent operating pressure-13.775 psi ... 145 psi
• ApprovalGerman Technical Control Board (TÜV)
• Certificate issuing authorityB 013277 0527 00
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Fire test materialUL94 HB
• LABS (PWIS) conformityVDMA24364-B2-L
• Ambient temperature-35 °C ... 60 °C
• Product weight according to length0.0192 kg/m
• Pneumatic connectionFor push-in connector O.D. 6 mm For barbed fitting I.D. 4 mm with union nut For barbed fitting I.D. 4 mm
• ColourSilver
• Shore hardnessD 52 +/-3
• Note on materialsRoHS compliant
• Material tubingTPE-U(PU)
•
