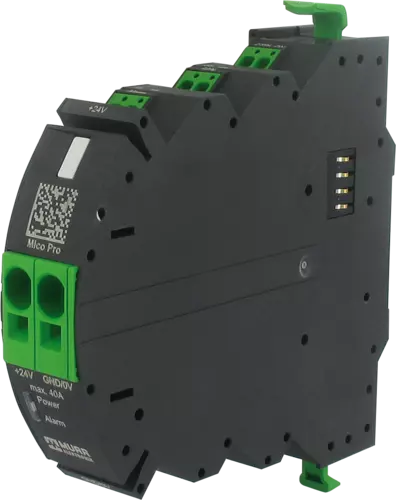

Murr Mico Pro Power module, 9000-41190-0000001

Total current max.

40 A

Input voltage DC min.

9 V

Input voltage DC max.

30 V

Nominal input voltage DC

12 V … 24 V

Total current bridge set max.

40 A

ON input voltage control inputs min.

9 V

ON input voltage control inputs max.

30 V

CTRL signal

ON/OFF

CTRL input voltage control inputs high min.

9 V

CTRL input voltage control inputs high max.

30 V

ON pulse length control inputs high min.

120 ms

Switching voltage AC max.

30 V

Switching voltage DC max.

30 V

Connection cross-section static min.

0,75 mm²

Connection cross section static max.

16 mm²

Connection cross-section dynamic min.

0,75 mm²

Connection cross section dynamic max.

16 mm²

AWG number static min.

4

AWG number static max.

20

AWG number dynamic min.

4

AWG number dynamic max.

20

Connection

Bridge system

Degree of protection (EN IEC 60529)

IP20

Shock resistance (EN IEC 60068-2-27)

30 g 11 ms 1/2 sin

Height

130 mm

Width

24 mm

Depth

114 mm

Mounting method

geschnappt

Suitable for mounting type

Mounting rail TH35, (EN 60715)

Operating temperature min.

-25 °C

Operating temperature max.

55 °C

Ambient temperature (storage, transport)

-40 °C … 80 °C
