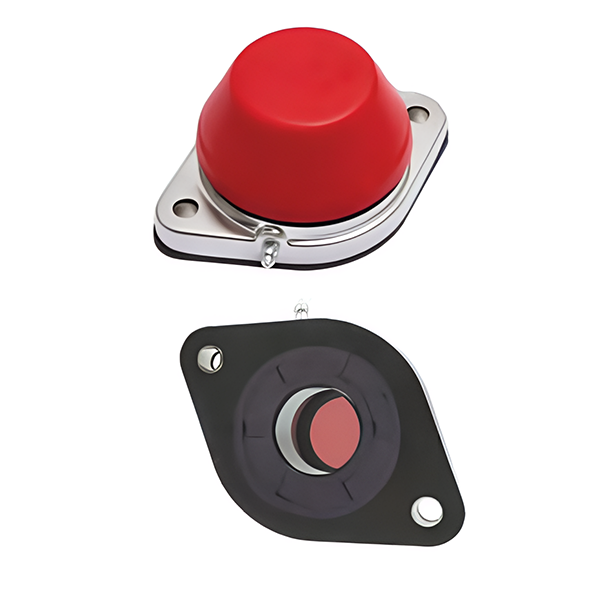

Movex, 2-HOLES SOLID BEARING SUPPORT WATERTIGHT CL 207 d 35 - CLOSED - I 117mm 93X148 INS.INOX, P84503SS

Series: CL

Type: Watertight (cap)

Fixation: 2-holes

Material: Plastic

Version: Solid

Fixing method: Grub screw

Unit of measure: Ea

Box: -

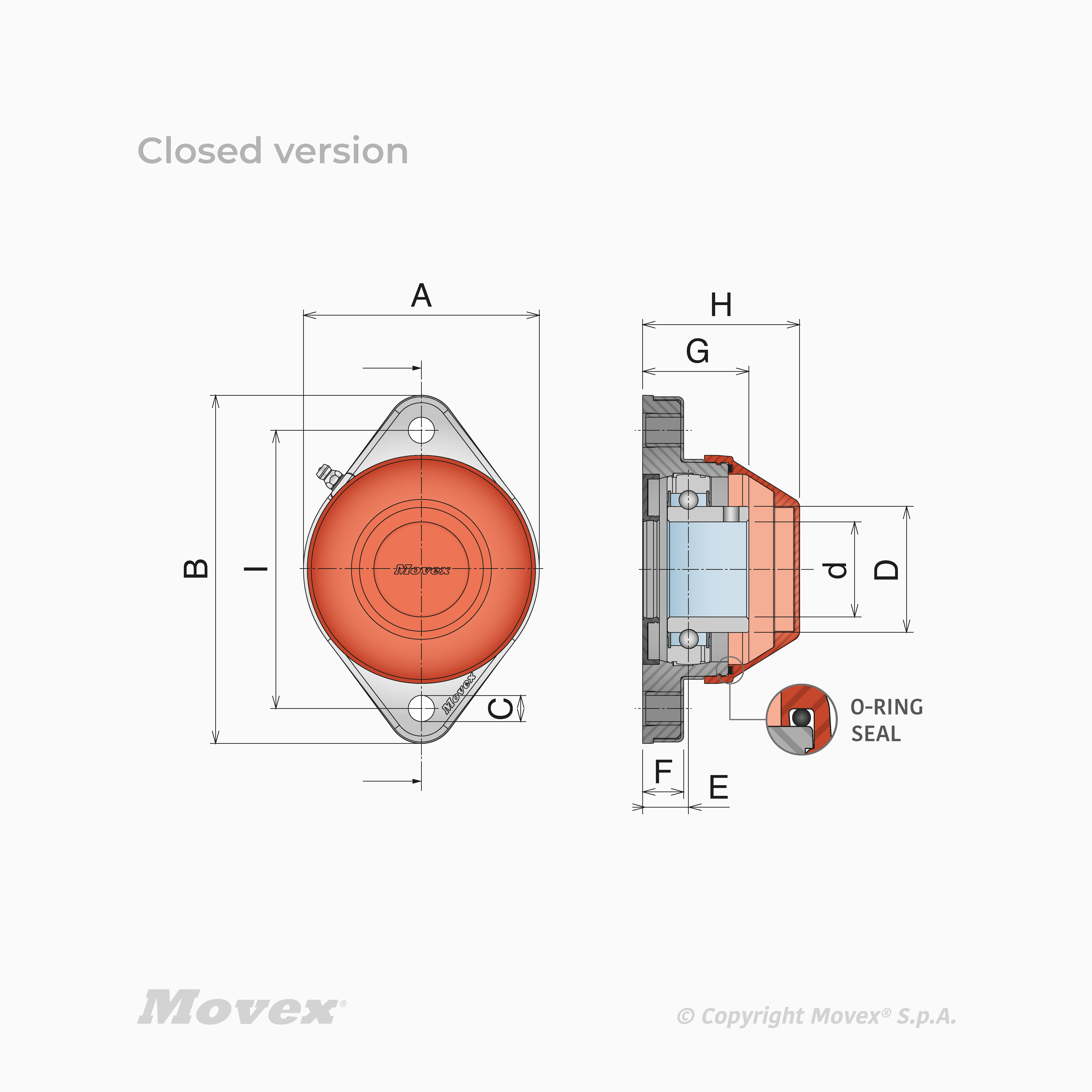

A: 99 mm

B: 146.5 mm

Operating Temperature °C: 5÷100 °C

D: 48 mm

E: 18.5 mm

C: 11 mm

F: 16.5 mm

G: 41.5 mm

H: 69 mm

Bearing material: Stainless steel

Watertight (Safety cap): Yes, closed cap

Shaft diameter: 35 mm

I (holes distance): 117 mm

Shaft adjustment: 2.5°

Housing: Housing in reinforced polypropylene & cover in SS

Bearing: Chrome steel or stainless steel ball bearing (pre-lubricated)

Spacers: Nickel-plated brass mounting hole spacers

Grease nipple: Nickel plated steel or SS grease nipple M6 conical (Plug for “Long life”)

Cap: Polypropylene open cap with O-ring seal & NBR top seal

Seal: NBR bottom seal
