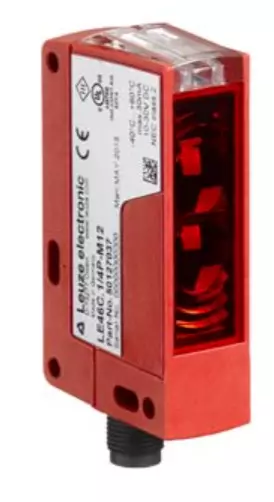

LEUZE HT46CI/4W-M12, 50127067, Diffuse sensor with background suppression

Series: 46C

Operating principle: Diffuse reflection principle with background suppression

Special version: Warning output

Black-white error: < 10% up to 1200 mm

Operating range: Guaranteed operating range

Operating range, white 90%: 0.005 ... 3 m

Operating range, gray 18%: 0.02 ... 2 m

Operating range, black 6%: 0.05 ... 1.5 m

Operating range limit: 0.005 ... 3 m (typical operating range)

Adjustment range: 120 ... 3,000 mm

Beam path: Focused

Light source: LED, Infrared

Wavelength: 860 nm

Transmitted-signal shape: Pulsed

LED group: Exempt group (in acc. with EN 62471)

Type of light spot geometry: Rectangular

Focus: Fixed

Protective circuit: Polarity reversal protection, Short circuit protected, Transient protection

Supply voltage U_B: 10 ... 30 V, DC, Incl. residual ripple

Residual ripple: 0 ... 15 %, From UB

Open-circuit current: 0 ... 30 mA

Number of digital switching outputs: 2 Piece(s)

Type: Digital switching output

Switching element: Transistor, PNP

Switching principle: Light switching

Switching element: Transistor, PNP

Switching principal: U_B switching

Function: Warning output

Switching frequency: 250 Hz

Response time: 2 ms

Readiness delay: 300 ms

Number of connections: 1 Piece(s)

Function: Signal OUT, Voltage supply

Type of connection: Connector

Thread size: M12

Type: Male

Material: Plastic

No. of pins: 4 -pin

Encoding: A-coded

Dimension (W x H x L): 20.5 mm x 76.3 mm x 44 mm

Housing material: Plastic

Plastic housing: PC-PBT

Lens cover material        : Plastic / PMMA

Net weight: 60 g

Housing color: Red

Type of fastening: Through-hole mounting, Via optional mounting device

Recommended tightening torque for M3 fastening: 0.9 N·m

Recommended tightening torque for M4 fastening: 1.4 N·m

Compatibility of materials: ECOLAB

Type of display: LED

Number of LEDs: 2 Piece(s)

Operational controls: Multiturn potentiometer

Function of the operational control: Range adjustment

Ambient temperature, operation: -40 ... 60 °C

Ambient temperature, storage: -40 ... 70 °C

Degree of Protection: IP 67, IP 69K

Protection class: III

Approvals: c UL US

Standards applied: IEC 60947-5-2
