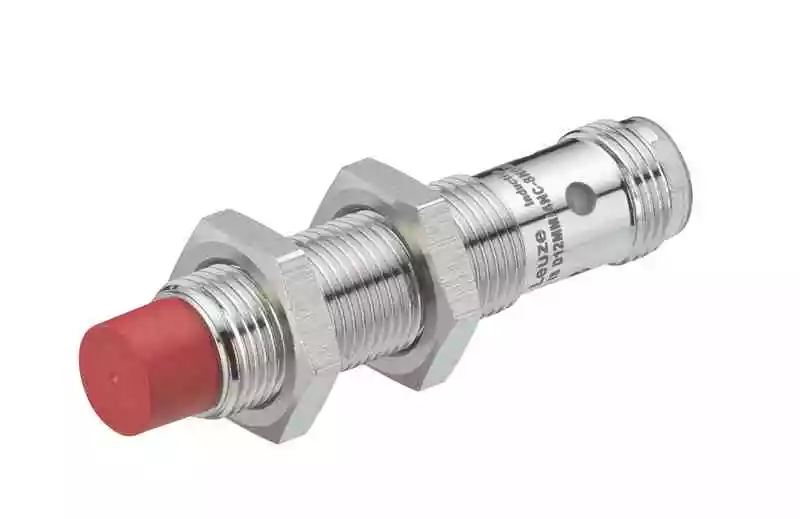

Series:D12
type. operating range limit Sn: 8 mm
Operating range Sa: 0 ... 6.4 mm
MTTF: 326 years
Protective circuit: Inductive protection, Polarity reversal protection, short circuit protected
Supply voltage UB: 10 ... 30 V, DC
Residual ripple: 0 ... 10 %, From UB
Open-circuit current: 0 ... 15 mA
Temperature drift, max. (in % of Sr): 15 %, Over the entire operating temperature range
Repeatability, max. (in % of Sr): 5 %, For UB = 20 … 30 V DC, ambient temperature Ta = 23 °C ± 5 °C
Switching hysteresis: 15 %
Number of digital switching outputs: 1 Piece(s)
Voltage type: DC
Switching current, max.: 200 mA
Residual current, max.: 0.1 mA
Voltage drop: ≤ 2.5 V
Switching element: Transistor, NPN
Switching principle: NC (normally closed)
Switching frequency: 800 Hz
Readiness delay: 100 ms
Number of connections: 1 Piece(s)
Function: Signal OUT, Voltage supply
Type of connection: Connector
Thread size: M12
Type: Male
Material: Metal
No. of pins: 4 -pin
Encoding: A-coded
Design: Cylindrical
Dimension (Ø x L): 12 mm x 56.5 mm
Thread size: M12 x 1 mm
Type of installation: Non-embedded/non-flush
Housing material: Metal
Metal housing: Copper-nickel alloy
Sensing face material: Plastic, Polybutylene (PBT)
Net weight: 20 g
Housing color: Red, RAL 3000, Silver
Type of fastening: Mounting thread, Via optional mounting device
Standard measuring plate: 24 x 24 mm², Fe360
Type of display: LED
Number of LEDs: 1 Piece(s)
Ambient temperature, operation: -25 ... 70 °C
Ambient temperature, storage: -25 ... 70 °C
Degree of Protection: IP 67
Protection class: II
Approvals: c UL US
Test procedure for EMC in accordance with standard: IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4
Standards applied: IEC 60947-5-2
