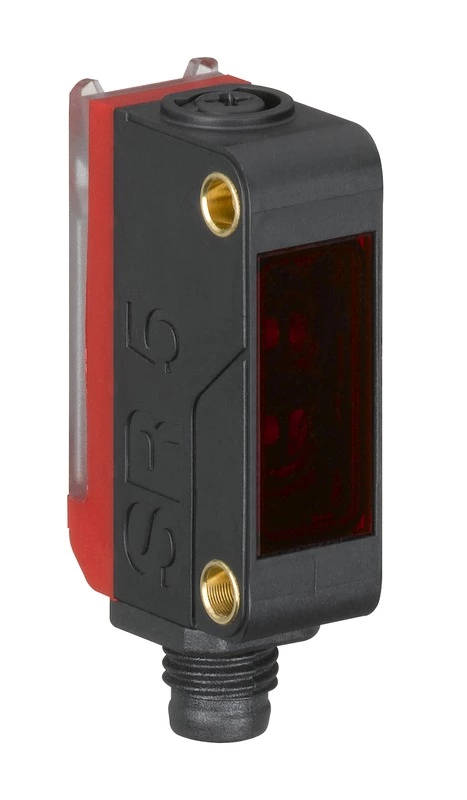

Series: 5B
Operating principle: Reflection principle
Operating range: 0.02 ... 6 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit: 0.02 ... 7.5 m (typical operating range), With reflector TK(S) 100x100
Light source: Power PinPoint® LED, Red
Wavelength: 645 nm
Transmitted-signal shape: Pulsed
LED group: Exempt group (in acc. with EN 62471)
Protective circuit: Polarity reversal protection, Short circuit protected
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 20 mA
Number of digital switching outputs: 1 Piece(s)
Type: Digital switching output
Switching element: Transistor, PNP
Switching principle: Light switch, Light/dark switch
Switching frequency: 1,000 Hz
Response time: 0.5 ms
Readiness delay: 300 ms
Number of connections: 1 Piece(s)
Function: Signal OUT, Voltage supply
Type of connection: Cable with connector
Cable length: 200 mm
Sheathing material: PVC
Cable color: Black
Number of conductors: 3 -wire
Wire cross section: 0.14 mm²
Thread size: M8
Type: Male
Material: Plastic
No. of pins: 3 -pin
Dimension (W x H x L): 11 mm x 32.4 mm x 20 mm
Housing material: Plastic
Plastic housing: PC-ABS
Lens cover material: Plastic
Net weight: 20 g
Housing color: Black, Red
Type of fastening: Two M3 threaded sleeves, Via optional mounting device
Recommended tightening torque for M3 fastening: 0.9 N·m
Compatibility of materials: ECOLAB
Type of display: LED
Number of LEDs: 2 Piece(s)
Function of the operational control: Light/dark switching
Ambient temperature, operation: -40 ... 60 °C
Ambient temperature, storage: -40 ... 70 °C
Degree of protection: IP 67
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2
