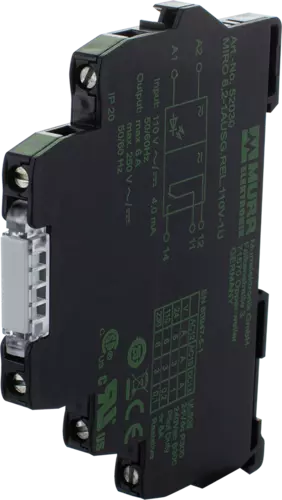

Murr, MIRO 6.2 110V-1U Output Relay, 52030

Input voltage AC

110 V

Input voltage AC min.

95 V

Input voltage AC max.

121 V

Input voltage DC

110 V

Input voltage DC min.

95 V

Input voltage DC max.

121 V

Input current

4 mA

Switching voltage AC max.

250 V

Switching voltage DC max.

250 V

Switching current max.

6 A

Switching current DC

10 mA

Power rating AC max.

1.500 VA

Power rating DC max.

120 W

Utilization category AC-12 (EN IEC 60947-5-1)

6 A @ 24 V 6 A @ 110 V 6 A @ 230 V

Utilization category AC-15 (EN IEC 60947-5-1)

3 A @ 24 V 3 A @ 110 V 3 A @ 230 V

Utilization category DC-13 (EN IEC 60947-5-1)

1 A @ 24 V 0.2 A @ 110 V 0.1 A @ 230 V

Status indication LED

green

Condition lifetime

load-dependent

Electrical lifetime

0 cycles

Mechanical endurance

0 cycles

Response time max.

10 ms

Drop-out time max.

15 ms

Bounce time max.

1,5 ms

Material contact

Ag Sn O2

Height

91 mm

Width

6,2 mm

Depth

71 mm

Mounting method

geschnappt

Suitable for mounting type

(EN 60715), mounting rail

Operating temperature min.

-20 °C

Operating temperature max.

55 °C
