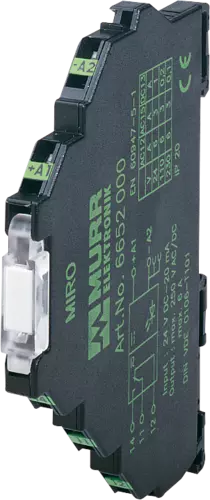

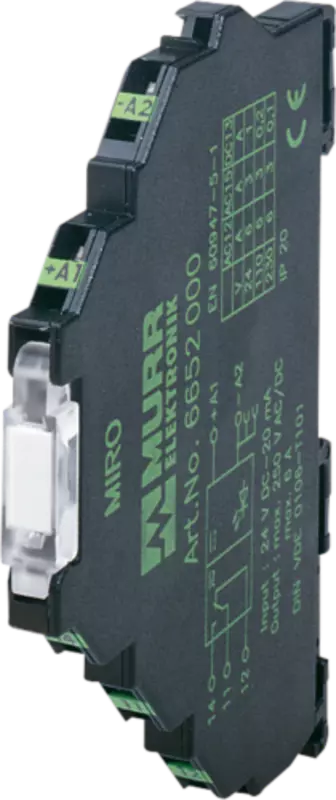

Murr, MIRO 6.2 24VDC-1U Output Relay, 6652000

Input voltage DC

24 V

Input voltage DC min.

19,2 V

Input voltage DC max.

30 V

Input current

14 mA

Switching voltage AC max.

250 V

Switching voltage DC max.

250 V

Switching current max.

6 A

Switching current DC

100 mA

Switching frequency max.

0,1 Hz

Additional condition switching frequency

with load

Power rating AC max.

1.500 VA

Power rating DC max.

120 W

Utilization category AC-12 (EN IEC 60947-5-1)

6 A @ 24 V 6 A @ 110 V 6 A @ 230 V

Utilization category AC-15 (EN IEC 60947-5-1)

3 A @ 24 V 3 A @ 110 V 3 A @ 230 V

Utilization category DC-13 (EN IEC 60947-5-1)

1 A @ 24 V 0.2 A @ 110 V 0.1 A @ 230 V

Status indication LED

green

Condition lifetime

load-dependent

Electrical lifetime

0 cycles

Rated surge voltage

4 kV

Mechanical endurance

0 cycles

Response time max.

10 ms

Drop-out time max.

15 ms

Bounce time max.

1,5 ms

Material contact

Ag Sn O2

Height

91 mm

Width

6,2 mm

Depth

70 mm

Mounting method

geschnappt

Suitable for mounting type

(EN 60715), mounting rail

Operating temperature min.

-25 °C

Operating temperature max.

60 °C
