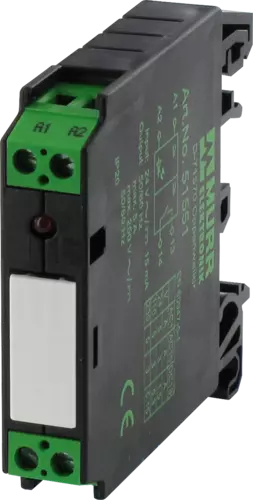

Murrelektronik Murr, Rmm 11/24 Output Relay, 51551

Input voltage AC

24 V

Input voltage AC min.

19,2 V

Input voltage AC max.

30 V

Input voltage DC

24 V

Input voltage DC min.

19,2 V

Input voltage DC max.

30 V

Input current

15 mA

Switching voltage AC max.

250 V

Switching voltage DC max.

250 V

Switching current max.

5 A

Switching current DC

100 mA

Switching frequency max.

10 Hz

Power rating AC max.

1.250 VA

Power rating DC max.

240 W

Switching capacity AC-12 (EN IEC 60947-5-1)

5 A (24/110/230 V AC)

Utilization category AC-15 (EN IEC 60947-5-1)

3 A @ 24 V 3 A @ 110 V 3 A @ 230 V

Utilization category DC-13 (EN IEC 60947-5-1)

1.5 A @ 24 V 0.3 A @ 110 V 0.15 A @ 230 V

Status indication LED

red

Condition lifetime

load-dependent

Electrical lifetime

0 cycles

Rated surge voltage

4 kV

Mechanical endurance

0 cycles

Response time max.

10 ms

Drop-out time max.

15 ms

Bounce time max.

1,5 ms

Material contact

Ag hv, Ag Ni 0.15 hv

Height

56 mm

Width

12 mm

Depth

65 mm

Mounting method

geschnappt

Suitable for mounting type

Mounting rail TH35, (EN 60715), G32

Operating temperature min.

-20 °C

Operating temperature max.

50 °C
