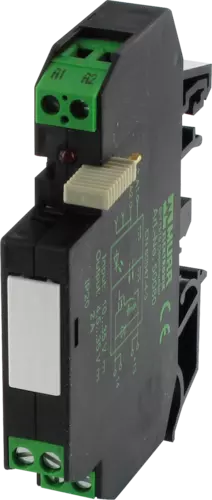

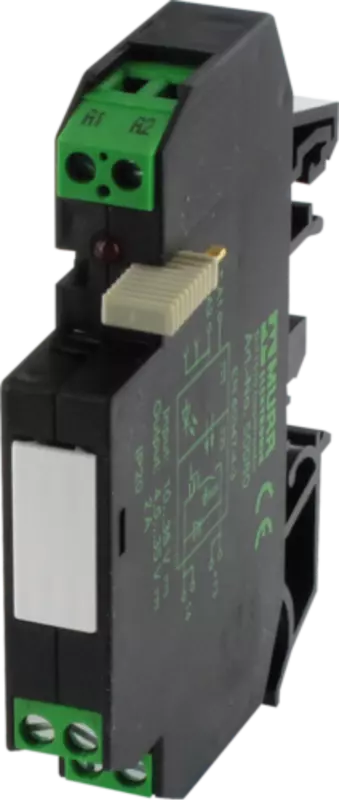

Murrelektronik Murr, Rmmdu 11/24 Output Relay, 51120

Input voltage DC

24 V

Input voltage DC min.

21,6 V

Input voltage DC max.

26,4 V

Input current

15 mA

Switching voltage AC max.

250 V

Switching voltage DC max.

250 V

Switching current max.

8 A

Switching current DC

100 mA

Switching frequency max.

10 Hz

Power rating AC max.

2.000 VA

Power rating DC max.

240 W

Switching capacity AC-12 (EN IEC 60947-5-1)

8 A (24/110/230 V AC)

Utilization category AC-15 (EN IEC 60947-5-1)

3 A @ 24 V 3 A @ 110 V 3 A @ 230 V

Utilization category DC-13 (EN IEC 60947-5-1)

2.5 A @ 24 V 0.4 A @ 110 V 0.3 A @ 230 V

Status indication LED

red

Condition lifetime

load-dependent

Electrical lifetime

0 cycles

Rated surge voltage

5 kV

Mechanical endurance

0 cycles

Response time max.

10 ms

Drop-out time max.

15 ms

Bounce time max.

2 ms

Material contact

Ag Ni

Height

82 mm

Width

12 mm

Depth

68 mm

Mounting method

geschnappt

Suitable for mounting type

Mounting rail TH35, (EN 60715), G32

Operating temperature min.

-20 °C

Operating temperature max.

50 °C
