Approval: CE, UKCA, UL/cUL, SEV, TÜV, FCC, IC
Sensor principle: Transponder
Coding level to ISO 14119: Low
Classification to EN 60947-5-3: PDDB
Suitable for series connection: no
Supply voltage (V): 24 V
Type of supply voltage U1: DC
Power consumption DC: 1
Number of inputs: 2
DC voltage at input: 24 V DC
Number of OSSD outputs: 2
Number of sig. outputs: 1
Potential isolation S/C O: no
S/C output short circuit proof: yes
Utilisation cat. to EN 60947-1: DC-13
Ambient temperature standard: EN 60068-2-14
Ambient temperature: 0 °C
Storage temperature standard: EN 60068-2-1/-2
Climatic suitability standard: IEC 60068-2-78
Humidity rating: 93 % r. h. at 40 °C
Perm. operating height ASL: 2000 m
EMC to standard ...: EN 55011: class A, EN 60947-5-3, EN 61326-3-1
Vibration to standard ...: EN 60068-2-6
Acc. shock to standard1: 30g
Overvoltage category: III
Pollution degree clear. Creep.: 3
Protection type housing: IP65, IP67, IP69
UL enclosure type: type 1
Pulse length lock/unlock req.: 350-400 ms
Bend radius (when laying) K1: 5 x Ø
Escape release available: no
Max. vertical offset: +/-3,0 mm
Max. ang. offset round X axis: +/-2,0 deg
Max. ang. offset round Y axis: +/-2,5 deg
Max. ang. offset round Z axis: +/-7,5 deg
Max. offset closing direction: +/-2 mm

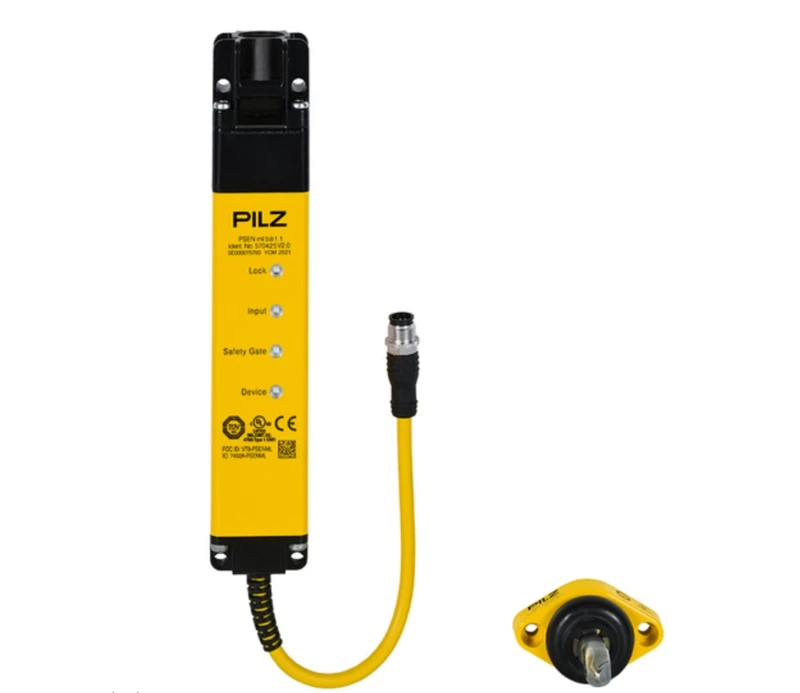

Type 1 actuator: PSEN ml 1.1
Connection type: M12, 8-pin male
Cable lines: LiYY 8 x 0.25 mm²
Product material: Zn, Aluminium, Galvanized steel, Stainless steel, plastic
Height dimension: 217.2 mm
Width dimension: 40 mm
Depth dimension: 40 mm
Net weight: 1100 g
Gross weight: 1450 g
Operating frequency: 122 kHz-128 kHz
