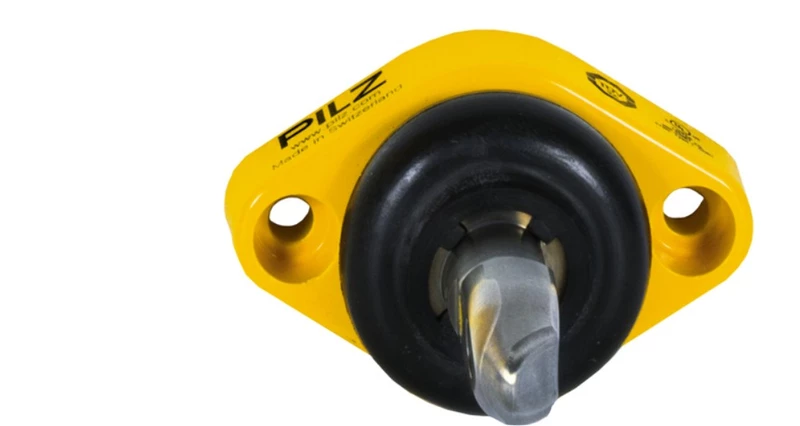

PILZ PSEN ml 1.1 actuator, 570480

Approval: CE, UKCA, cULus Listed, TÜV, FCC, IC

Sensor principle: Transponder

Coding level to ISO 14119: Low

Transponder coding: coded

Ambient temperature standard: EN 60068-2-14

Ambient temperature: 0 °C

Storage temperature standard: EN 60068-2-1/-2

Climatic suitability standard: IEC 60068-2-78

Humidity rating: 93 % r. h. at 40 °C

EMC to standard ...: EN 55011: class A, EN 60947-5-3, EN 61326-3-1

Vibration to standard ...: EN 60068-2-6

Acc. shock to standard1: 30g

Protection type housing: IP67

UL enclosure type: type 1

Max. vertical offset: +/-3,0 mm

Max. ang. offset round X axis: +/-2,0 deg

Max. ang. offset round Y axis: +/-2,5 deg

Max. ang. offset round Z axis: +/-7,5 deg

Max. offset closing direction: +/-2 mm

Product material: Zn, Aluminium, Galvanized steel, Stainless steel, plastic

Net weight: 145 g

Gross weight: 190 g
