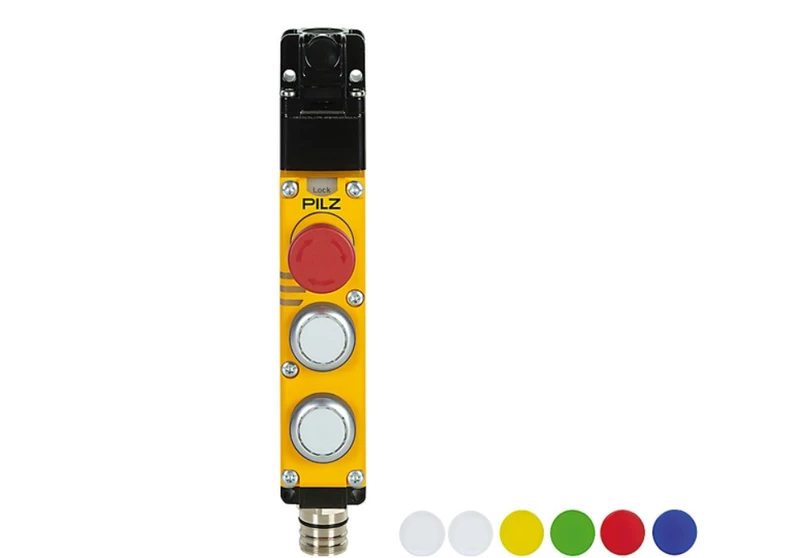

Pilz PSEN mg1-A-LLFXX-FBA1-U1-D switch, 6M000009

Approval: CE, UKCA, cULus Listed, TÜV, FCC, IC, EAC (Eurasian)

Sensor principle: Transponder

Coding level to ISO 14119: Low

Classification to EN 60947-5-3: PDDB

Transponder coding: coded

Reset type: Automatic reset

Suitable for series connection: no

Supply voltage (V): 24 V

Type of supply voltage U1: DC

Power consumption DC: 1 W

Number of inputs: 7

DC voltage at input: 24 V DC

Number, E-STOP N/C: 2

Number, E-STOP signal contact: 1

Release type emergency stop: Turn release

Contact material E-STOP: Au

Cont. mat. sign. cont. E-STOP: Au

Number, pushbutton: 2

Switch cap. p/b to standard: EN 60947-5-1

Contact material pushbutton: Ag

Number of OSSD outputs: 2

Number of sig. outputs: 1

Potential isolation S/C O: No

S/C output short circuit proof: Yes

Utilisation cat. to EN 60947-1: DC-13

Contact material button:          AgNi

Switch cap. button to standard: EN 60947-5-1

Ambient temperature standard: EN 60068-2-14

Ambient temperature: 0 °C

Storage temperature standard: EN 60068-2-1/-2

Climatic suitability standard: IEC 60068-2-78

Humidity rating: 93 % r. h. at 40 °C

Perm. operating height ASL: 2000 m

EMC to standard ...: EN 55011: class A, EN 60947-5-3, EN 61326-3-1

Vibration to standard ...: EN 60068-2-6

Acc. shock to standard1: 30g

Overvoltage category: III

Pollution degree clear. Creep.: 3

Protection type housing: IP65

Pulse length lock/unlock req.: 350-400 ms

Escape release available: no

Type 1 actuator: PSEN ml 1.1

Product material: Zn, Aluminium, Galvanized steel, Stainless steel, plastic

Housing material upper part: Plastic

Height dimension: 237.5 mm

Width dimension: 40 mm

Depth dimension: 65 mm

Net weight: 1069 g

Gross weight: 1534 g

Operating frequency: 122 kHz-128 kHz
